The SS Circle can be defined as a SS sheet or plate which comes in the circular form. Their chemical composition and physical properties would specifically depend on the grade of SS used for manufacturing it. Their thickness can range between 1mm to 100mm, and these steel circles are used in a wide range of industries. The specific industry or environments whether they can be used would depend on the ss grade. Generally, they are corrosion resistant, durable, and have high strength. They are also available in different finishes. The Stainless Steel Circle gives excellent performance which is the primary reason behind its popularity.
Machine Cutting vs Plasma Cutting
The machine cutting procedure for Stainless Steel Circle Ring is faster and much more affordable compared to the modern automated techniques. The procedure involves drilling with in-line ability and then tapping and machining all the parts of the SS plate. The machine cutting technique is traditional, cutting edge, and the plate can be cut according to the given specifications.
The plasma cutting procedure helps in cutting ss with varied thickness with the help of a plasma torch. The electric arc here is basically formed with the help of an inert gas, which gets focused from the nozzle to the desired cutting surface. The arc helps in turning the gas to a very precise plasma beam which can cut through the steel very accurately. This is an automated process, driven by mechanical specifications.

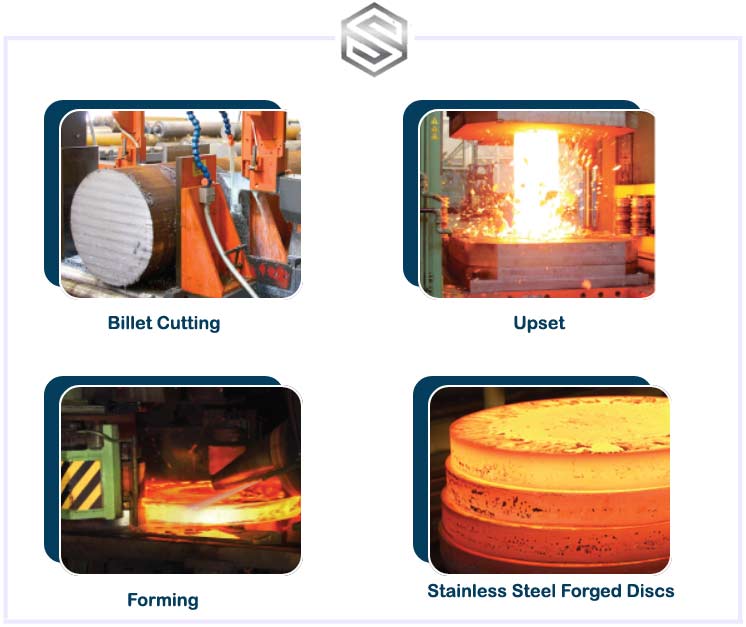

Forged Discs vs Forged Blanks
The forged disc or forged blanks are quite similar. They are a circular metal whose outer diameter is greater than its length. They are both solid structures which have a wide range of applications. They are durable, corrosion resistant and available in different finishes.
| Specification | 303, 304, 304L, 304H, 316, 316L, 316H, 310, 321/H, 317/L, 347/H,416, 410, 420, 17-4, 254 SMO |
|---|---|
| Standard | API, UNS, ASTM, ASME, EN, AISI, GB, SUS, DIN |
| Sizes | 3 inch Dia up to 38 inch Dia 1500 lbs max. |
| Production Method | Cutting Plate / Forged |
| Port |
|
| Export to | Saudi Arabia, Ireland, Korea, Thailand, Singapore, Canada, Egypt, Vietnam, Russia, Spain, Brazil, Malaysia, Oman, Peru, Italy, USA, Kuwait, Mexico, Indonesia, Dubai, Canada, etc |
| Our SS Circle conforms to Standard ISO 15156/ NACE MR0175 | |
| Product | Price List |
|---|---|
| Cold Rolled 201 SS Circle Size 0.27 * 267mm | INR 83/kg |
| 2b Finish SS 201 Circle, Size: 0.29 * 305mm | INR 98/kg |
| Forged SS Ring (Rough) Din X 46 Cr 13, Fs D 615.0/ 520.0 * 186.0 mm | INR 150/kg |
| Product | Price per Kg in India |
|---|---|
| SUS304 Circle | INR 250/ Kg |
| SUS202 Circle | INR 110/ Kg |
| SS Circle | INR 290/ Kg |
| SS 304L Circle | INR 230/ Kg |
| WERKSTOFF NR. | ALLOY | JIS | UNS | BS | AFNOR | GOST | EN |
|---|---|---|---|---|---|---|---|
| EN 1.4301 | AISI 304 | SUS 304 | S30400 | 304S31 | Z7CN18‐09 | 08Х18Н10 | X5CrNi18-10 |
| EN 1.4306 / 1.4307 | AISI 304L | SUS 304L | S30403 | - | Z3CN18‐10 | 03Х18Н11 | X2CrNi18-9 / X2CrNi19-11 |
| EN 1.4401 / 1.4436 | AISI 316 | SUS 316 | S31600 | 316S31 / 316S33 | Z7CND17‐11‐02 | - | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| EN 1.4404 / 1.4435 | AISI 316L | SUS 316L | S31603 | 316S11 / 316S13 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Formula to calculate SS Circle Weight
